Unsere Produkte

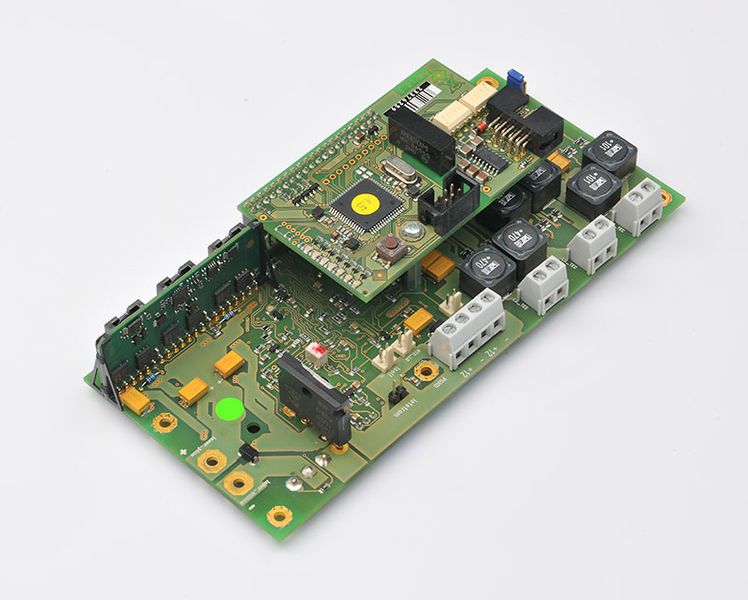

Steuerung / Controller

Input Voltage	90-132 VAC / 180-264 VAC auto ranging
Input Frequency	47-63 Hz
Operation Temperature	-10°C to 50°C (air cooled)
Connections	RS232, modulation, display connector, laser actual current connector in mV per Amp, 2 x NTC connector, 3 x TEC connector, extern sleep current switch
Modulation Voltage	0-5 V analog / TTL 30 kHz max.
Diode current	45 A max.
Dimensions	190 x 90 x 38 mm (l x w x h) mm

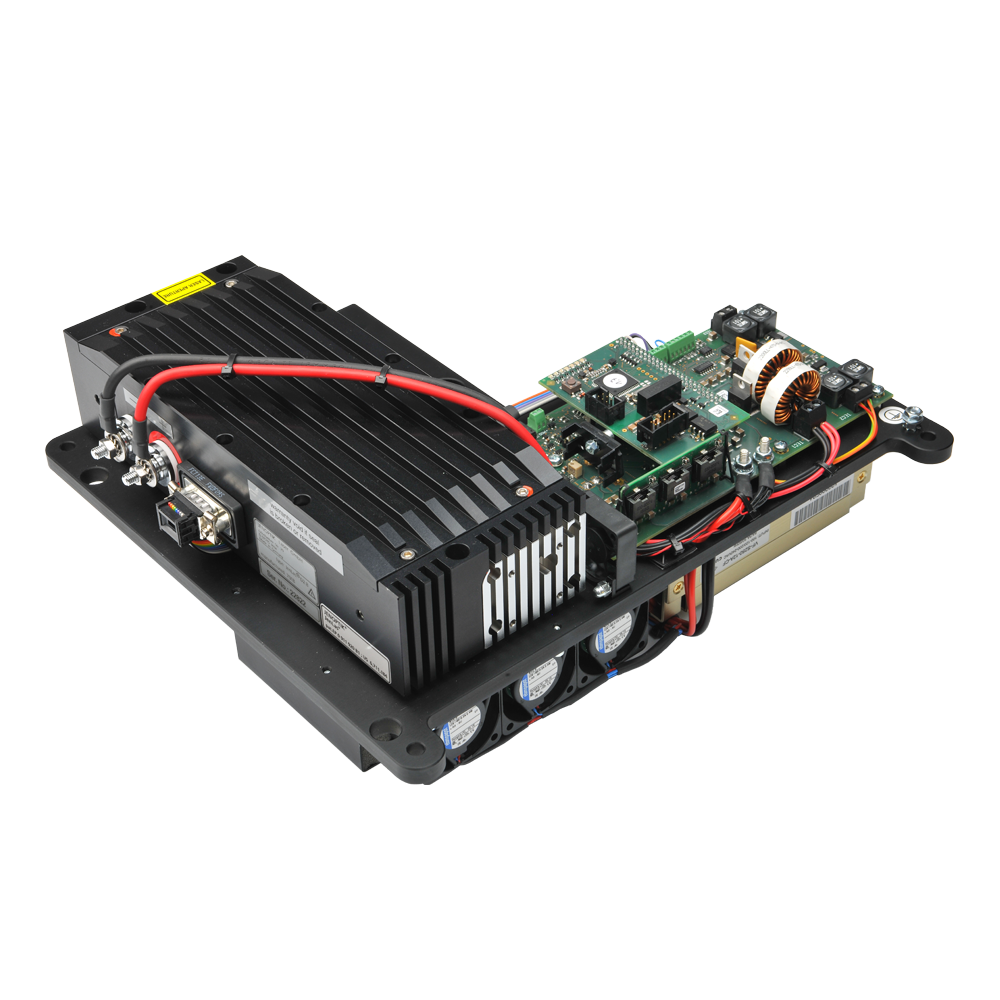

base plate series

Input Voltage	90-132 VAC / 180-264 VAC auto ranging
Input Frequency	47-63 Hz
Operation Temperature	-10°C to 40°C (air cooled)
Connections	RS232, modulation, display connector, laser actual current connector in mV per Amp, extern sleep current switch
Modulation Voltage	0-5 V analog / TTL 30 kHz max.
Laser	Disk laser
Laser class	4
Wavelength	532 nm (+/- 1 nm)
Output power	3/5/8/10 W (cw)
Beam quality	M² < 10 (10 W)
Divergency	M² < 10 (10 W)
Dimensions	190 x 90 x 38 mm (l x w x h) mm

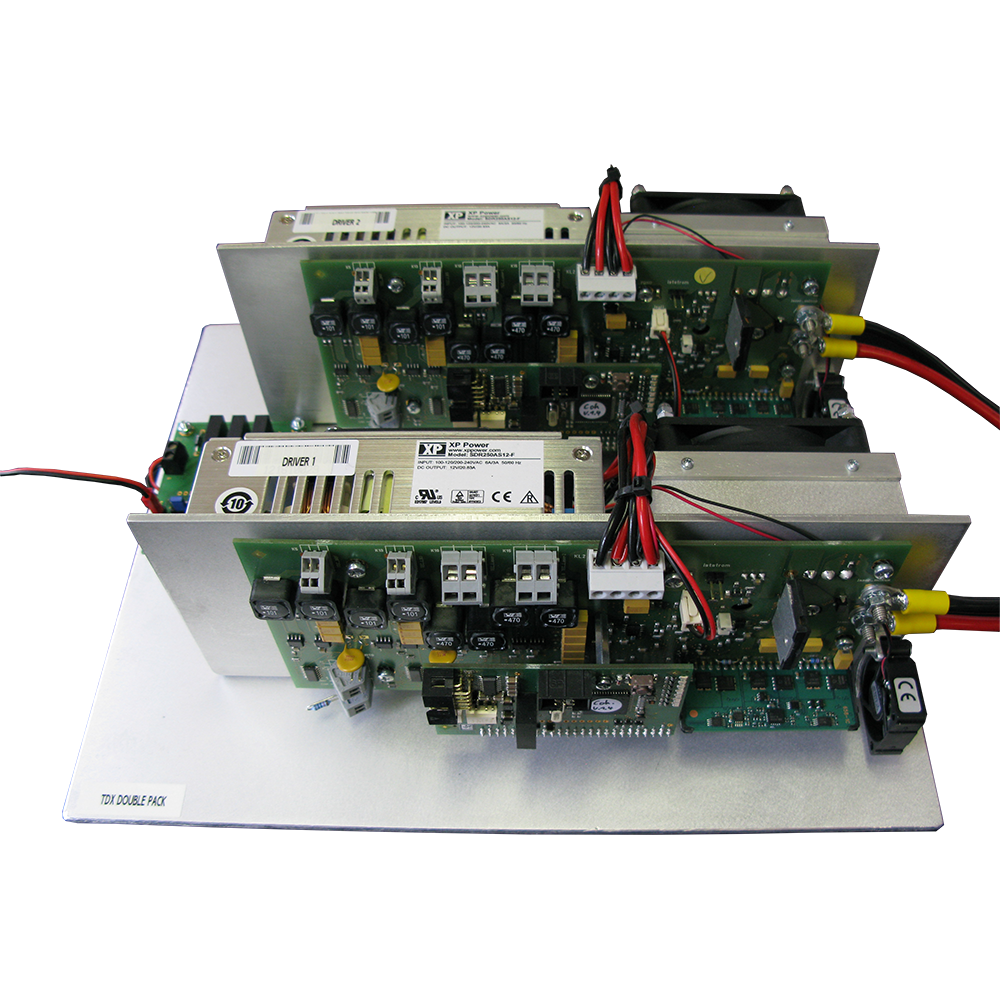

Double Pack

double power laser driver up to 100 Amp laser current trigger input RS232 connection adjustment software incl.
Input Voltage	100-240 VAC
Input Frequency	50/60 Hz
Trigger Voltage	0-5 VDC / TTL
Trigger Frequency	60 kHz max.
Laser current	max 100 Amp
Dimensions	240 x 230 x 110 mm (l x w x h)

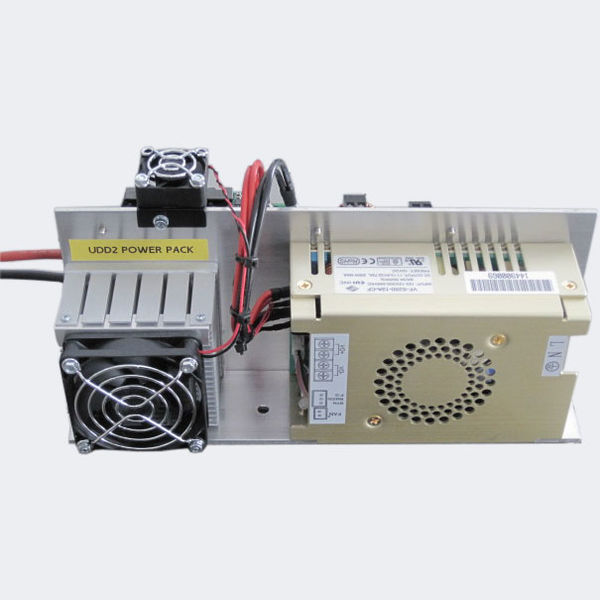

UDD2 PowerPack

compact size laser driver up to 50 Amp laser current 4 TEC outputs trigger input RS232 connection display available adjustment software incl.
Input Voltage	100-240 VAC
Input Frequency	50/60 Hz
Trigger Voltage	0-5 VDC / TTL
Trigger Frequency	30 kHz max.
Laser current	max 50 Amp
Dimensions	240 x 96 x 110 mm (l x w x h)

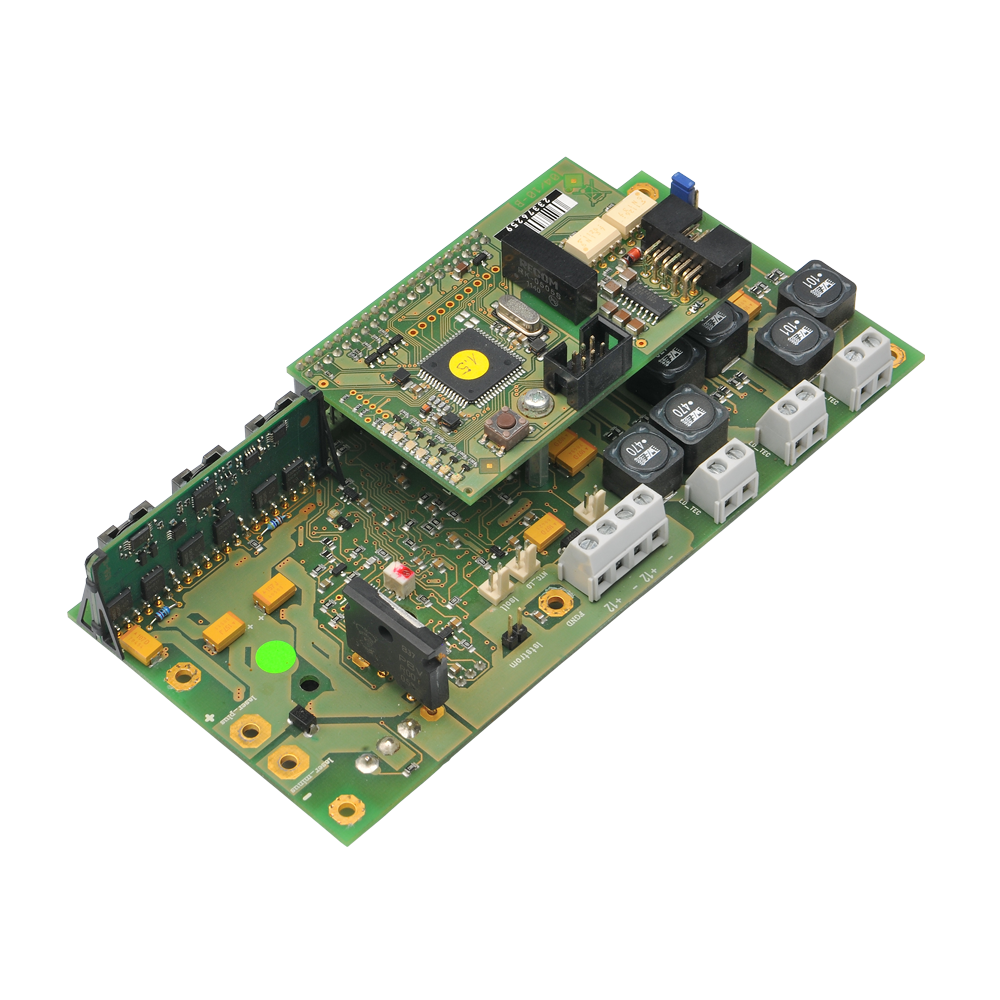

Steuerung / Controller

Input Voltage	90-132 VAC / 180-264 VAC auto ranging
Input Frequency	47-63 Hz
Operating Temperature:	-10°C to 50 °C (air cooled)
Connections	RS232, modulation, display connector, laser actual current connector in mV per Amp, 2 x NTC connector, 3 x TEC connector, extern sleep current switch
Modulation Voltage	0-5 V analog / TTL 30 kHz max.
Diode current	45 A max.
Dimensions	190 x 90 x 38 mm (l x w x h) mm

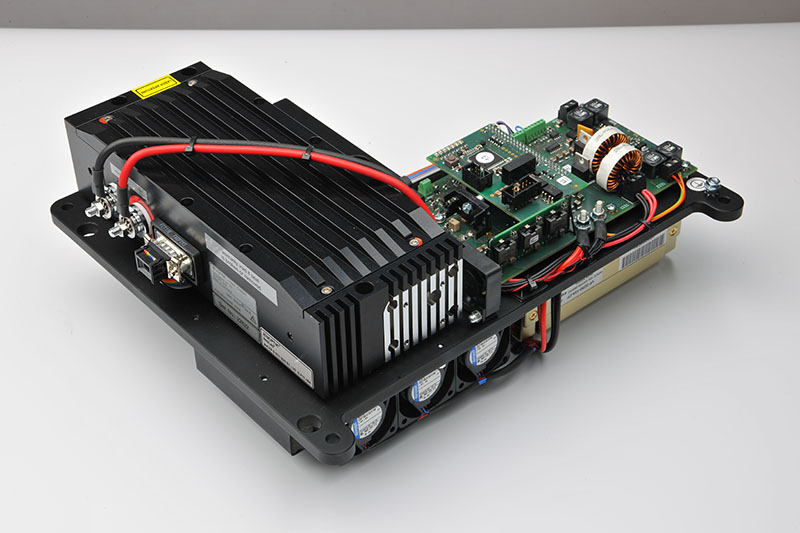

base plate series

Input Voltage	90-132 VAC / 180-264 VAC auto ranging
Input Frequency	47-63 Hz
Operating Temperature:	-10°C to 40 °C (air cooled)
Connections	RS232, modulation, display connector, laser actual current connector in mV per Amp, extern sleep current switch
Modulation Voltage	0-5 V analog / TTL 30 kHz max.
Laser	Disk laser
Laser class	4
Wavelength	532 nm (+/- 1 nm)
Output power	3/5/8/10 W (cw)
Beam quality	M² < 10 (10 W)
Divergency	M² < 10 (10 W)
Dimensions	300 x 120 x 95 mm (l x w x h) mm

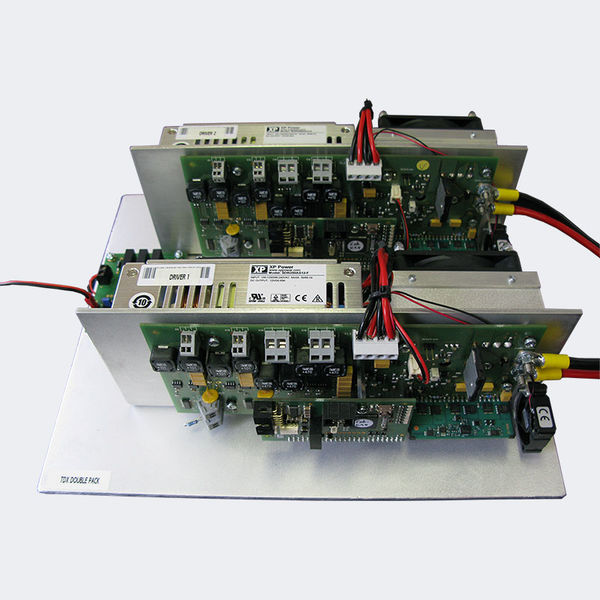

DoublePack

double power laser driver up to 100 Amp laser current trigger input RS232 connection adjustment software incl.
Input Voltage	100-240 VAC
Input Frequency	50/60 Hz
Trigger Voltage	0-5 VDC / TTL
Trigger Frequency	60 kHz max.
Laser current	max 100 Amp
Dimensions	240 x 230 x 110 (l x w x h)

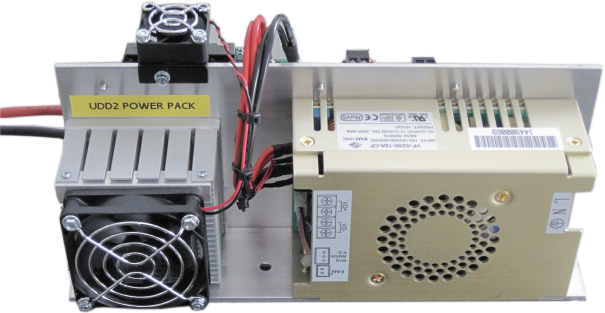

UDD2 PowerPack

compact size laser driver up to 50 Amp laser current 4 TEC outputs trigger input RS232 connection display available adjustment software incl.
Input Voltage	100-240 VAC
Input Frequency	50/60 Hz
Trigger Voltage	0-5 VDC / TTL
Trigger Frequency	30 kHz max.
Laser current	max 50 Amp
Dimensions	240 x 96 x 110 (l x w x h)
